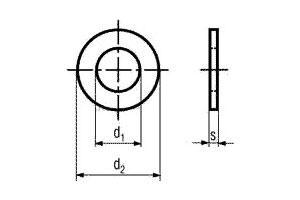

Technical Diagram Of DIN 126

DIN 126 (ISO 7091) Plain Washer
TECHNICAL DATA OF DIN 126
d1 used for d2 s
5.5 M5 10 1
6.6 M 6 12 1.6
7.6 M 7 14 1.6
9 M 8 16 1.6
11 M 10 20 2
13.5 M 12 24 2.5
15.5 M 14 28 2.5
17.5 M 16 30 3
22 M 20 37 3
24 M 22 39 3
26 M 24 44 4
30 M 27 50 4
33 M 30 56 4
36 M 33 60 5
39 M 36 66 5
42 M 39 72 6
45 M 42 78 7
48 M 45 85 7
52 M 48 92 8
56 M 52 98 8
62 M 56 105 9
66 M 60 110 9
70 M 64 115 9
78 M 72 125 10
86 M 80 140 12
96 M 90 160 12
